Automatic Multi-Functional Labeling Machine Single Side, Double Sides And Circumferential Labeling
Applicable labels: self-adhesive labels, self-adhesive films, electronic regulatory codes, bar codes, etc;
Applicable products: items that need to be labeled on side planes, side surfaces, large curved surfaces and circumferential surfaces;
Application industries: widely used in printing, cosmetics, food, toys, daily chemicals, electronics, plastics, medicine and other industries;
Application examples: shampoo flat bottle labeling, lubricant flat bottle labeling, mineral water square bottle labeling, wine labeling and so on.
Technical Specifications(The following are the technical parameters of the standard model. Other special requirements and functions can be customized):
| Model | SY500 | Labeling accuracy | ±1mm |
| Sticker length | 20mm～220mm | Sticker turning out speed | 5～25m/min |
| Sticker width | 20mm～150mm | Labeling speed | 30～150pcs/min |
| Product length | 20mm～250mm | Conveying speed | 5～35m/min |
| Product width | 30mm～90mm | Weight | 370kg |
| Product height | 60mm～280mm | Power voltage | 220V 50HZ |
| Product diameter | 40mm～110 mm | Power | 2KW |
| Sticker roll's external diameter | Φ280mm | Conveying oriention | fm left to side |
| Sticker roll's inner diameter | Φ76mm | Machine dimensions | 3000*1400*1600mm |

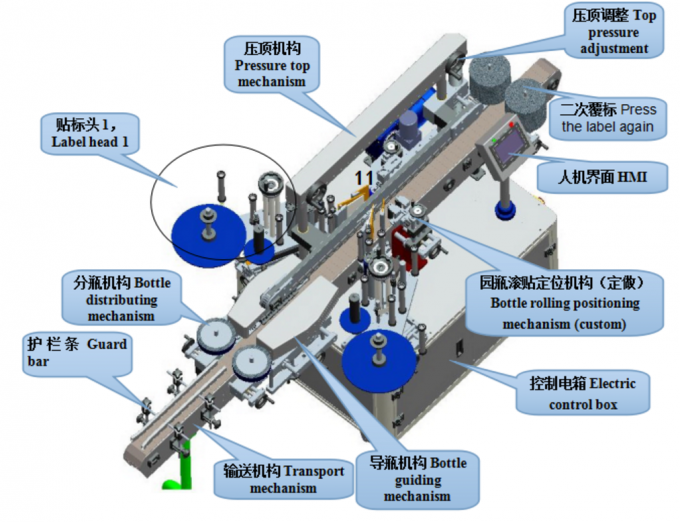

SY500 Workflow:
Product feeding - Transportation - Guiding the product to the right direction - Top pressure transportation - Inspection - Labeling - Pressure labeling - Secondary pressure labeling (some products) - Product output.
